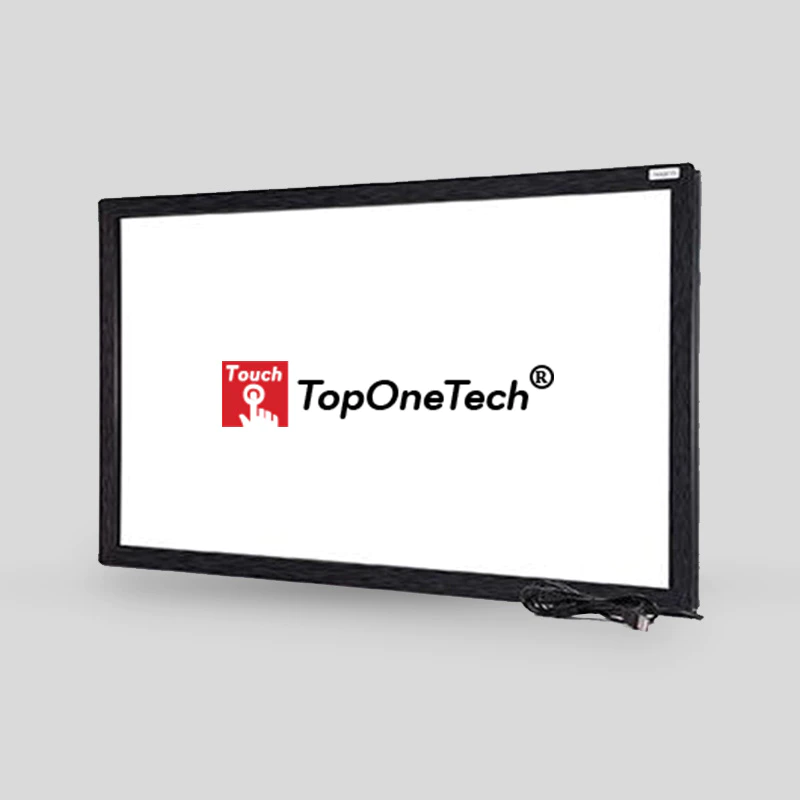

◆ 82 inch IR touch frame screen - TopOneTech

◆ PRODUCT SPECIFICATIONS

Part Numeber(s)	TOTTTD8202U-A5
Size	82”
Broder(mm)	25
Thickness（mm）	16.5
Touch area(mm)	1809*1019
Outline dimension	1859106916.5
Ratio of length&width	16:9
Glass thick	5mm
Color	Balck
MOQ	1 piece
Payment	T/T, Western Union, Credit Card, Paypal, L/C
Delivery time	5-8 working days
Start port	EXW Shenzhen, Guangdong
Certification	FCC, CE, ERP

: 82 inch IR touch frame screen - TopOneTech; oemtouchmonitor.com/detail/1470.html; ￥998

◆ PRODUCT INTRODUCTION

A matrix of Infrared(IR)LEDs and photo diodes are used to create a two dimensional grid over the display to detect where infrared light is blocked and thus where touch points are. There is 82 inch IR touch frame which is available in both standard and custom open frame display, Toponetech’s projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors.
