PRODUCT SPECIFICATIONS

Part Numeber(s)

TTS156C2001

Size

15.6”

Broder(mm)

24

Thickness(mm)

7.9

Touch area(mm)

345*198

Outline dimension

382*235*7.9

Ratio of  length&width

16:9

Glass thick

3mm

Color

Black

MOQ

1 piece

Payment

T/T, Western Union, Credit Card, Paypal, L/C

Delivery time

5-8 working days

Start port

EXW Shenzhen, Guangdong

Certification

FCC, CE, ERP


15.6 inch IR touch frame screen - TopOneTech
15.6 inch IR touch frame screen - TopOneTech
oemtouchmonitor.com/detail/1442.html
998

PRODUCT INTRODUCTION

15.6 inch IR touch frame screen - TopOneTech

A matrix of Infrared(IR)LEDs and photo diodes are used to create a two dimensional grid over the display to detect where infrared light is blocked and thus where touch points are. There is 15.6 inch infrared touchscreen which is available in both standard and custom industrial touchscreen monitor, Toponetech’s projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors.

DRAWING

15.6 inch IR touch frame screen 3D drawing

APPLICATIONS

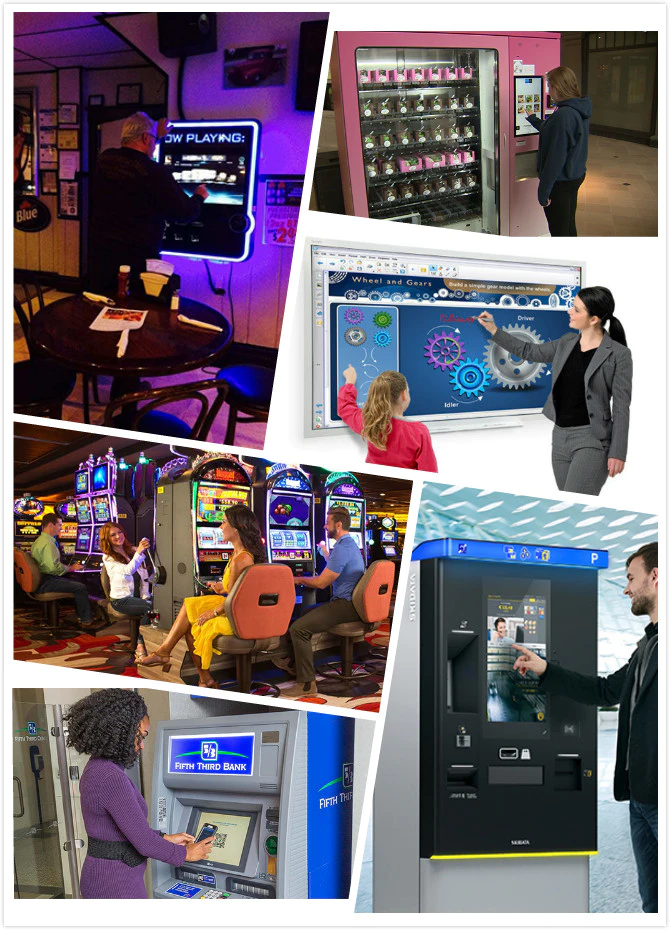

15.6 inch IR touch frame screen applications.
