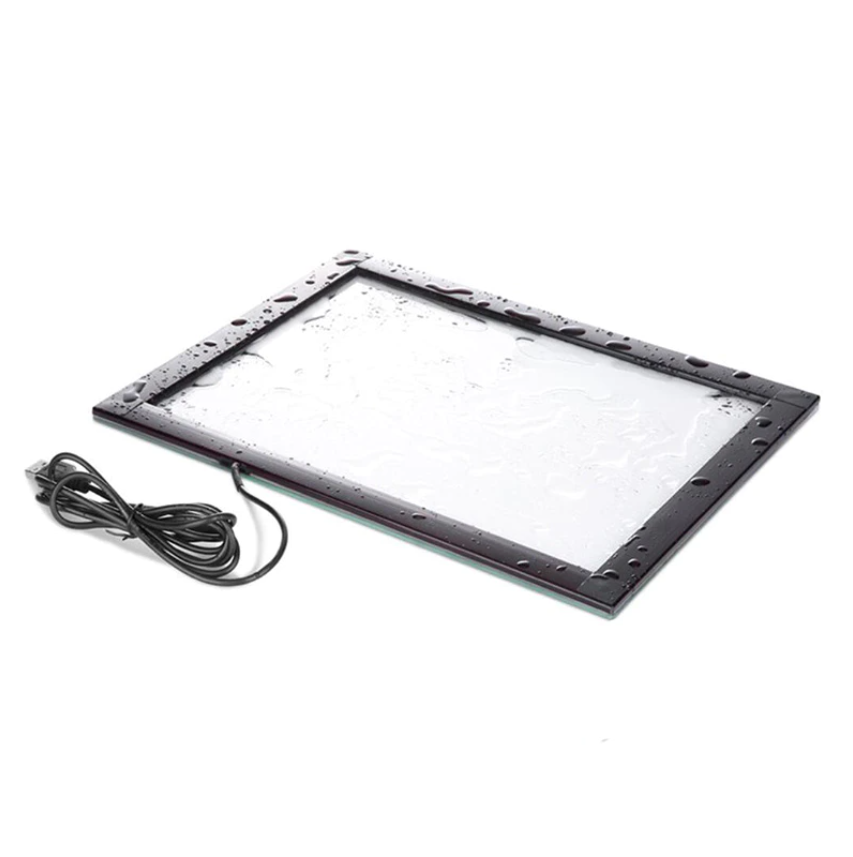

23 inch IR touch frame screen - TopOneTech

23 inch IR touch frame screen  - TopOneTech
23 inch IR touch frame screen  - TopOneTech
23 inch IR touch frame screen  - TopOneTech
23 inch IR touch frame screen  - TopOneTech
23 inch IR touch frame screen  - TopOneTech
23 inch IR touch frame screen  - TopOneTech
23 inch IR touch frame screen  - TopOneTech
23 inch IR touch frame screen  - TopOneTech

PRODUCT SPECIFICATIONS

Part Numeber(s)

TTS230C2I001

Size

23”

Broder(mm)

24

Thickness(mm)

7.9

Touch area(mm)

511*288

Outline dimension

548*325*7.9

Ratio of  length&width

16:9

Glass thick

3mm

Color

Black

MOQ

1 piece

Payment

T/T, Western Union, Credit Card, Paypal, L/C

Delivery time

5-8 working days

Start port

EXW Shenzhen, Guangdong

Certification

FCC, CE, ERP


23 inch IR touch frame screen  - TopOneTech
23 inch IR touch frame screen - TopOneTech
oemtouchmonitor.com/detail/1448.html
998

PRODUCT INTRODUCTION

23 inch IR touch frame screen  - TopOneTech

A matrix of Infrared(IR)LEDs and photo diodes are used to create a two dimensional grid over the display to detect where infrared light is blocked and thus where touch points are. There is 23 inch infrared touchscreen which is available in both standard and custom industrial monitor for Kiosk, Toponetech’s projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors.

DRAWING

23 inch IR touch frame screen 3D drawing

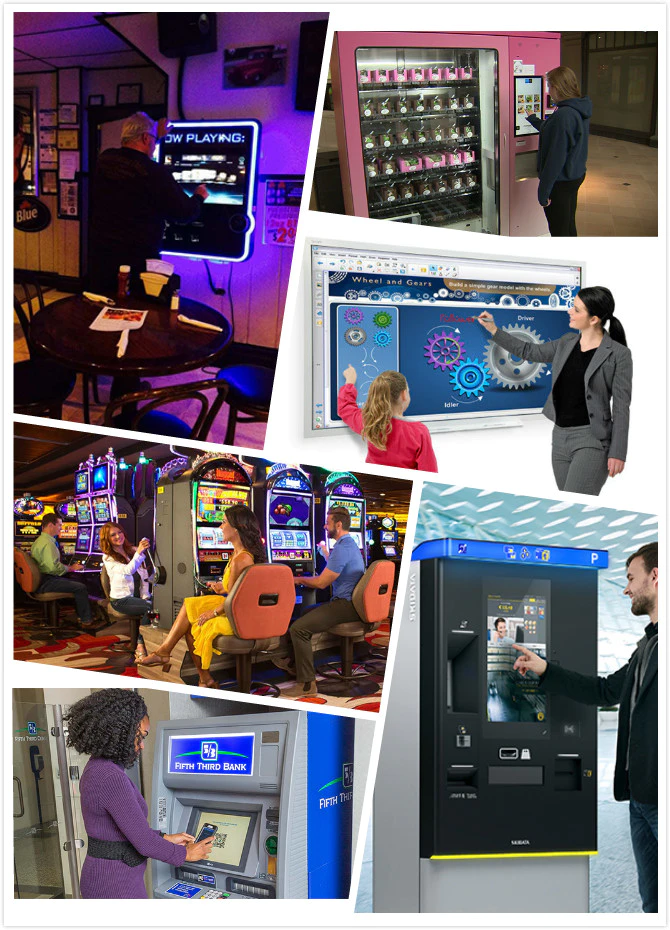

APPLICATIONS

23 inch IR touch frame screen is used on ATM
