15 inch LCD open frame PCAP touch computer-TopOneTech_Touch All-in-one for windows OS_

Home > Products > Touch all-in-one computers > Touch All-in-one for windows OS > 15 inch LCD open frame PCAP touch computer-TopOneTech

15 inch LCD open frame PCAP touch computer-TopOneTech

15 inch LCD open frame PCAP touch computer-TopOneTech
15 inch LCD open frame PCAP touch computer-TopOneTech
15 inch LCD open frame PCAP touch computer-TopOneTech
15 inch LCD open frame PCAP touch computer-TopOneTech
15 inch LCD open frame PCAP touch computer-TopOneTech
15 inch LCD open frame PCAP touch computer-TopOneTech
15 inch LCD open frame PCAP touch computer-TopOneTech
15 inch LCD open frame PCAP touch computer-TopOneTech
15 inch LCD open frame PCAP touch computer-TopOneTech
15 inch LCD open frame PCAP touch computer-TopOneTech

PRODUCT SPECIFICATIONS

Part Numeber(s).

TOT150UPC012

Screen Size

15”

Active Area

305.00*299.00MM

Resolution

1024*768

Contrast Ratio

500:1

Touch

PC

Video Input

1*VGA/1*HDMI

USB Port

3*USB 2.0 1*USB 3.0

I/O

1*RJ45

Visual Angle horizontal/vertical

300cd/m2

Viewing Angle (Typ.at CR>10))

Horizontal(left/right)

85°/85°

Vertical(up/down)

85°/85°

Power Supply

Type: External brick
     Input (line) voltage: 100-240 VAC, 50-60 Hz
     Output voltage/current: 12 volts at 4 amps max

Environment

Operating Temp

-20~70°C

Storage Temp

-30~70°C

Humidity

Operating RH

20%~100%RH

Storage RH

5%~100%RH

Regular Warranty

1year

CPU

Intel J1900/I3/I5 optional

Operation System

Windows, Linux, Mac, Android etc

MOQ

1 piece

Payment

T/T, Western Union, Credit Card, Paypal, L/C

Delivery Time

5-8 working days

Start port

EXW Shenzhen, Guangdong

Certification

FCC, CE, ERP


15 inch LCD open frame PCAP touch computer-TopOneTech
15 inch LCD open frame PCAP touch computer-TopOneTech
oemtouchmonitor.com/detail/1399.html
998

PRODUCT INTRODUCTION

15 inch LCD open frame PCAP touch computer-TopOneTech

The Top One Tech 15 inch industrial all-in-one computers are fully enclosed and ruggedized touch screen AIO computer with fanless cooling systems. These units can be placed in a wide variety of environments thanks to being designed for use with wall mounts, desk stands, on swing arms, or for installation in control consoles. Each touch computers utilizes rugged industrial components and a fanless cooling system to enhance performance.


The rugged design of Toponetech’s industrial touch computers enable them to perform reliably in harsh conditions with difficult environmental factors such as moisture, heat, dust, and cold. Depending on the needs of your operations, you can choose from either resistive or projected capacitive touchscreen options.

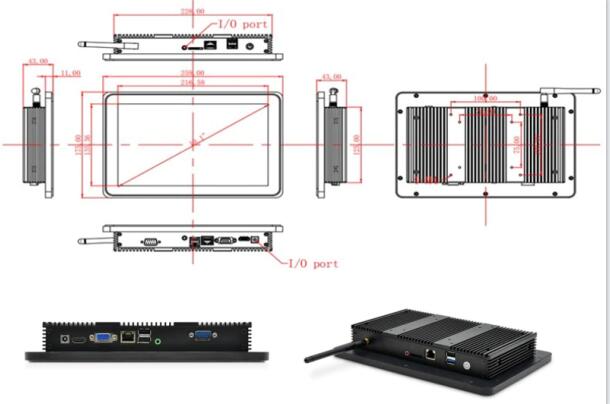

DRAWING


APPLICATIONS

Gaming display, Vending machine, Self-service terminal, ATM machine, Jukebox, Education.
