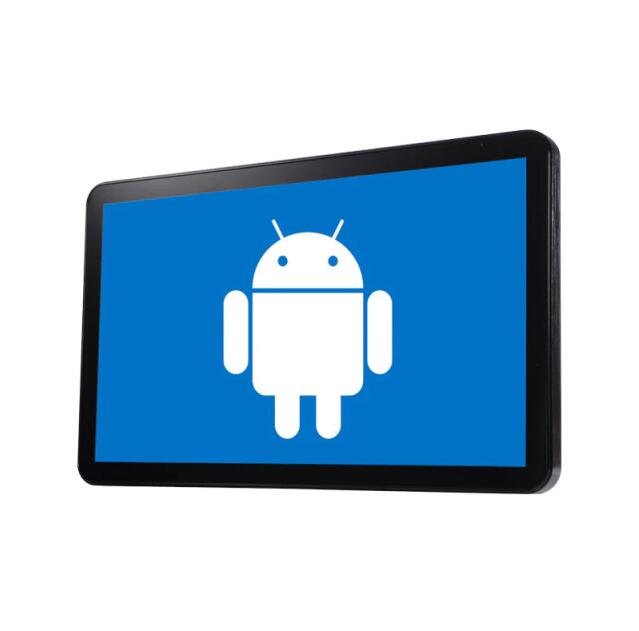

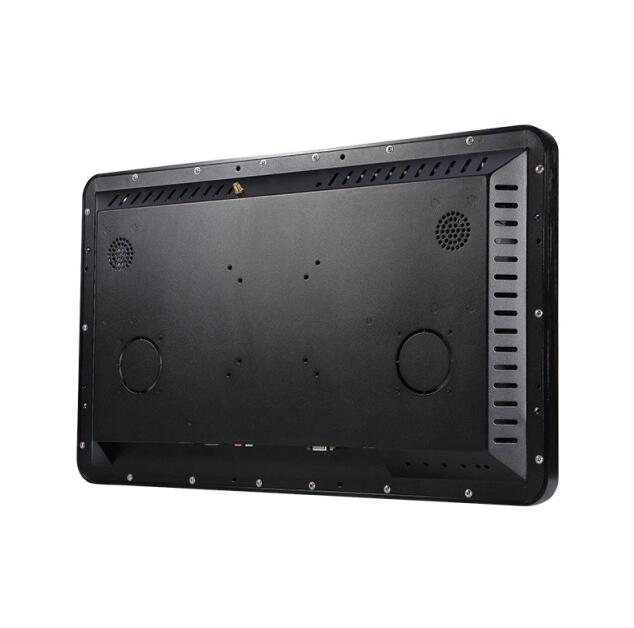

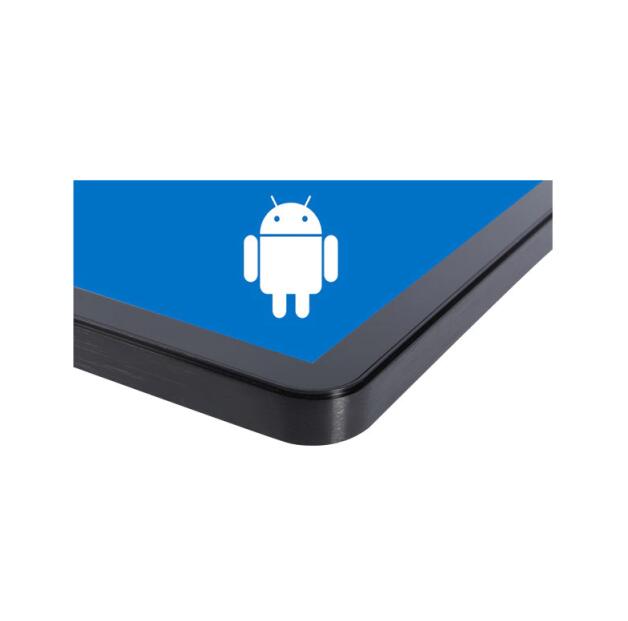

21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech

21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech
21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech
21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech
21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech
21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech
21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech
21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech
21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech
21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech
21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech

PRODUCT SPECIFICATIONS

Part Numeber(s).

TOT215UPC012

Screen Size

21.5”

Active Area

478x269.6MM

Resolution

1920×1080

Contrast Ratio

1000:1

Touch

PC

Internet Port

RJ45/Wifi

Serial Port

3*USB 2.0 1*USB 3.0

Visual Angle horizontal/vertical

250cd/m2

Viewing Angle (Typ.at CR>10))

Horizontal(left/right)

89°/89°

Vertical(up/down)

89°/89°

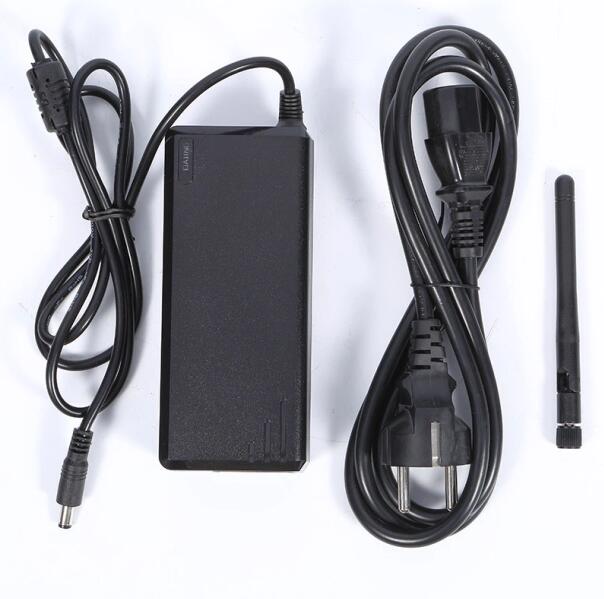

Power Supply

Type: External brick
     Input (line) voltage: 100-240 VAC, 50-60 Hz
     Output voltage/current: 12 volts at 4 amps max

Environment

Operating Temp

-10~60°C

Storage Temp

-20~70°C

Humidity

Operating RH

5%~90% RH

Storage RH

5%~90% RH

Regular Warranty

1 year

CPU

MS638 Dual core Android5.1  Snapdragon 835/845

Operation System

Windows, Linux,Mac,Android etc,Raspberry PI B3+

MOQ

1 piece

Payment

T/T, Western Union, Credit Card, Paypal, L/C

Delivery Time

5-8 working days

Start port

EXW Shenzhen, Guangdong

Certification

FCC, CE, ERP


21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech
21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech
oemtouchmonitor.com/detail/1384.html
998

PRODUCT INTRODUCTION

21.5 inch LCD touch All-in-one computer (the water-proof, PCAP, LED backlight)-TopOneTech

The Toponetech 21.5 inch industrial all-in-one computers are fully enclosed and ruggedized touch screen monitor computer with fanless cooling systems. These units can be placed in a wide variety of environments thanks to being designed for use with wall mounts, desk stands, on swing arms, or for installation in control consoles. Each touch screen monitor computer utilizes rugged industrial components and a fanless cooling system to enhance performance.
The rugged design of Toponetech’s 21.5 inch industrial all-in-one computers enable them to perform reliably in harsh conditions with difficult environmental factors such as moisture, heat, dust, and cold. Depending on the needs of your operations, you can choose from either resistive or projected capacitive touchscreen options.

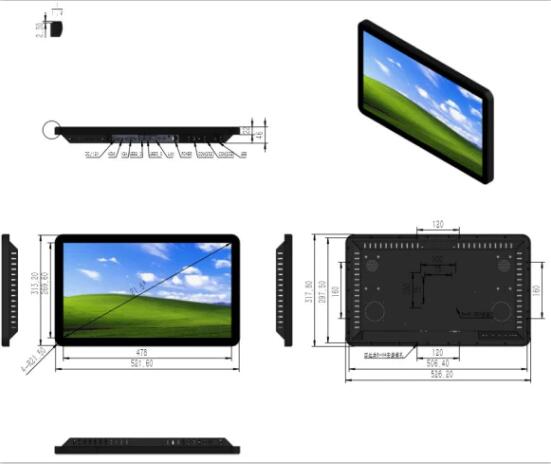

DRAWING


APPLICATIONS

Gaming display, Vending machine, Self-service terminal, ATM machine, Jukebox, Education.
