21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech_Indoor Open Frame Touchscreen Monitors_

Home > Products > Touch screen monitors > Indoor Open Frame Touchscreen Monitors > 21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech

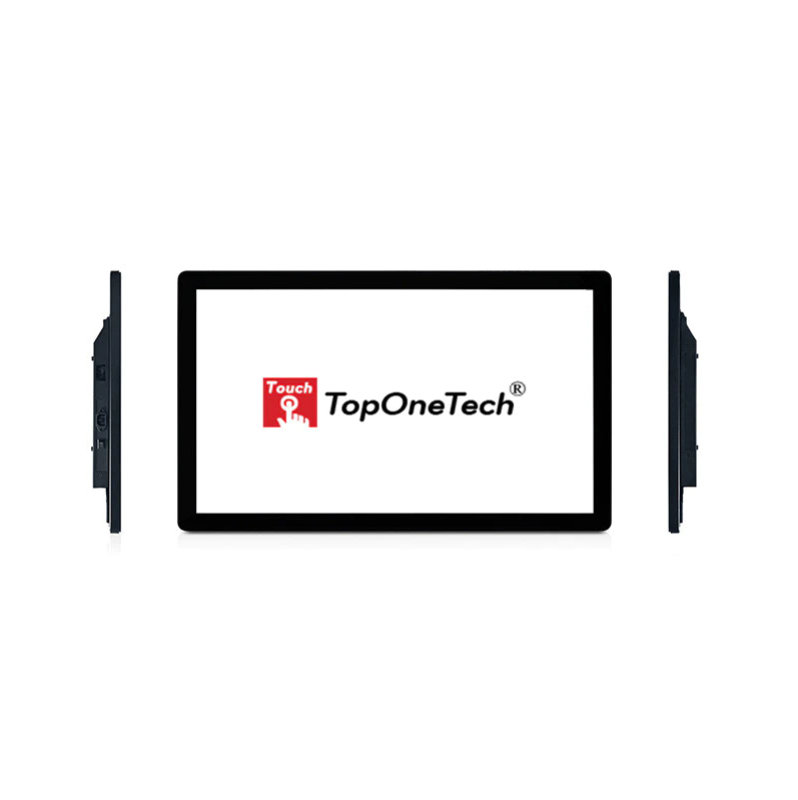

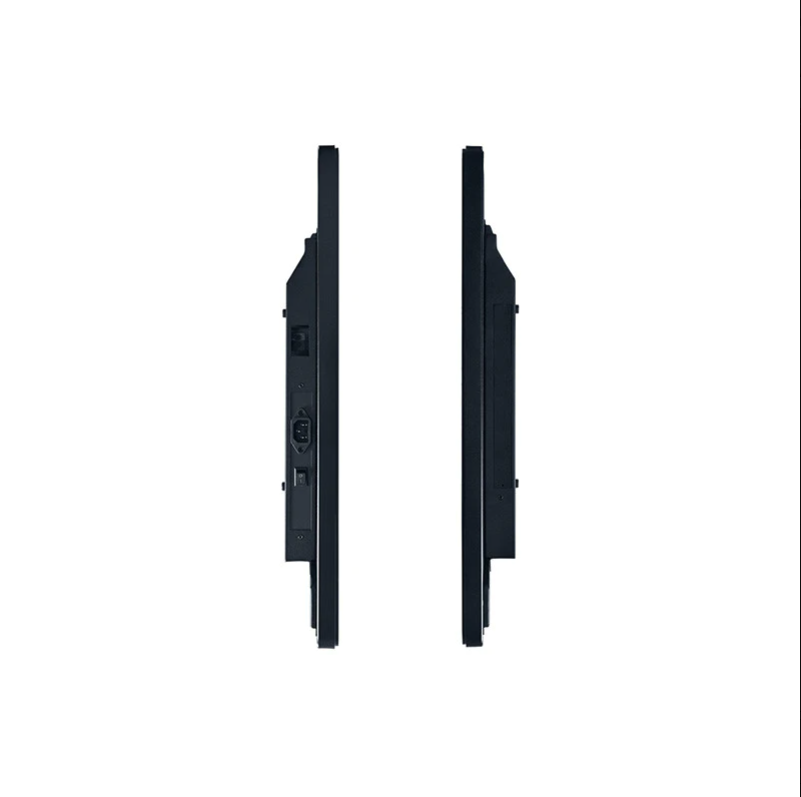

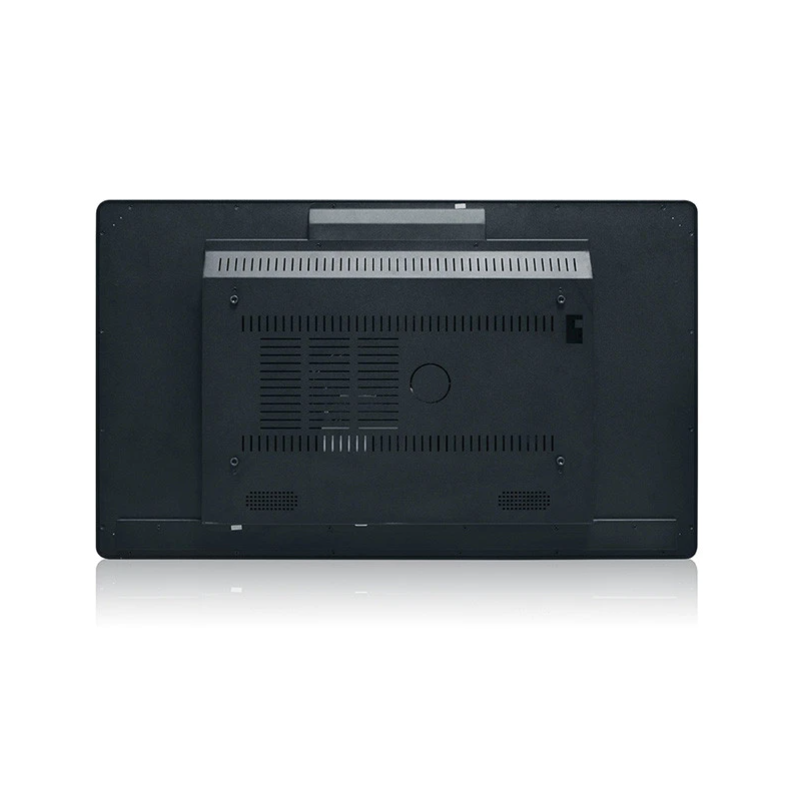

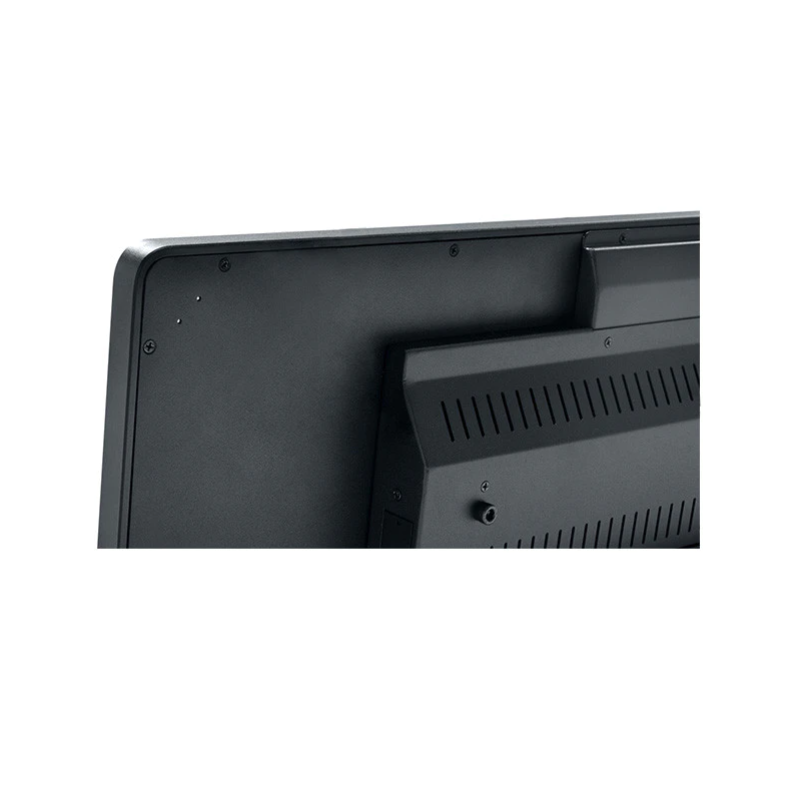

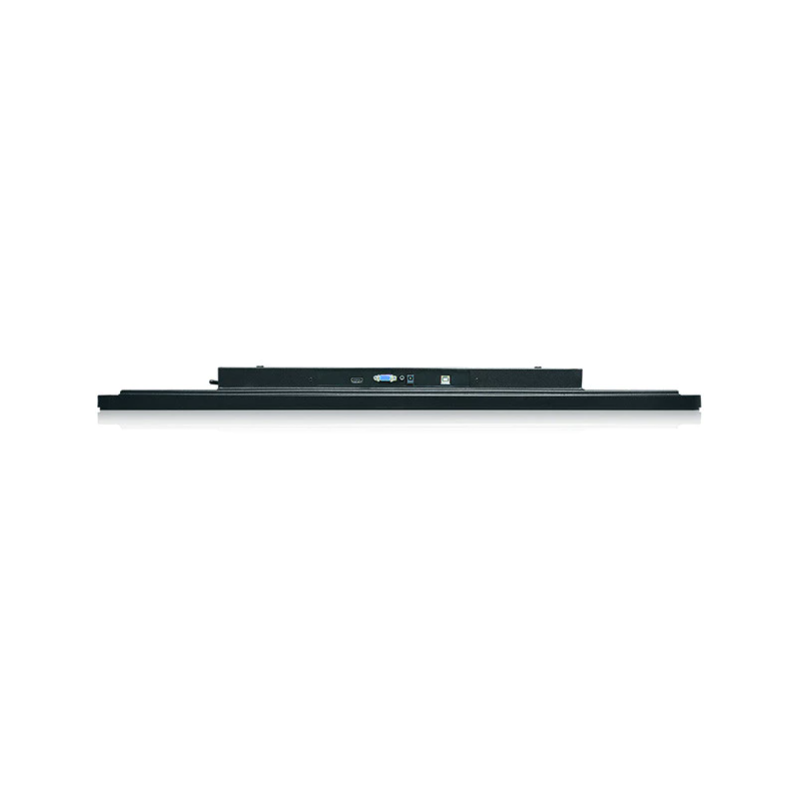

21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech

21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech
21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech
21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech
21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech
21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech
21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech
21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech
21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech
21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech
21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech

PRODUCT SPECIFICATIONS

Model

TOT215UCA028

Screen Size

21.5"

Active Area

477.6*269.6(mm)

Resolution

1920×1080@60Hz

Contrast Ratio

1000:1

Touch

PCAP

Power Consumption

25W Max. /0.85W(Standby)

Brightness

Pure LCD Panel

1000cd/m2

With SAW Glass Sensor

830cd/m2

Viewing Angle  (Typ.at CR>10)

Horizontal(left/right)

89°/89°

Vertical(up/down)

89°/89°

Environment

Operating Temp

0~50°C

Storage Temp

-20~60°C

Humidity

Operating RH

5%~90%

Storage RH:

5%~90%

Touch System Interface

Having USB interface

Monitor Dimensions (without bracket)

535.1*327.1*56.4(mm)

Regular Warranty

1year

MOQ

1 pieces

Payment

T/T, Western Union, Credit Card, Paypal, L/C

Delivery Time

5-8 working days

Start port

EXW Shenzhen, Guangdong

Certification

FCC, CE, ERP


21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech
21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech
oemtouchmonitor.com/detail/1370.html
998

PRODUCT INTRODUCTION

21.5 Inch LCD PCAP Open Frame Touchscreen Monitor Water-proof IP65 - TopOneTech

Toponetech`s 21.5 inch industrial outdoor touch monitors are optimized for outdoor environments. We provide customized outdoor open frame display solutions catering to varying display sizes, brightness,installation, and other customer requirements . Toponetech’s industrial monitors ensure 24*7day reliability and long- life durability.



* Front Water-proof IP65

Sunlight Readable (High Brightness outdoor open frame monitors)

* High Brightness LCD with LED 1000-2500 cd/㎡

* Sizes: 7"-65"(Other Sizes Available)

* Touch Screen Available

* Front IP grade Waterproof(Option)


DRAWING

APPLICATIONS

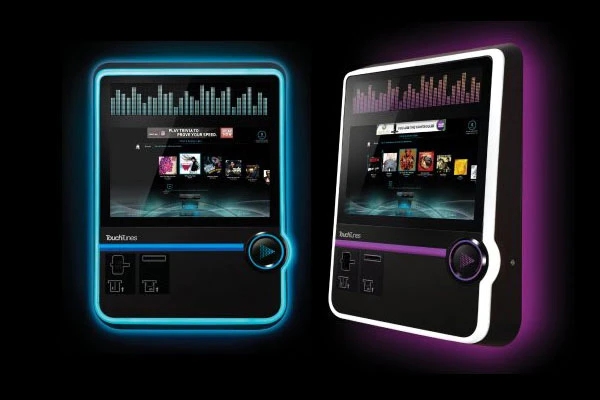

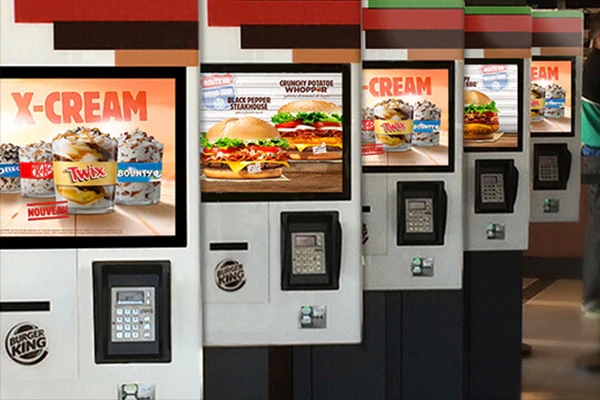

Gaming display, Vending machine, Self-service terminal, ATM machine, Jukebox, Education.
