21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)_Indoor Open Frame Touchscreen Monitors_

Home > Products > Touch screen monitors > Indoor Open Frame Touchscreen Monitors > 21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)

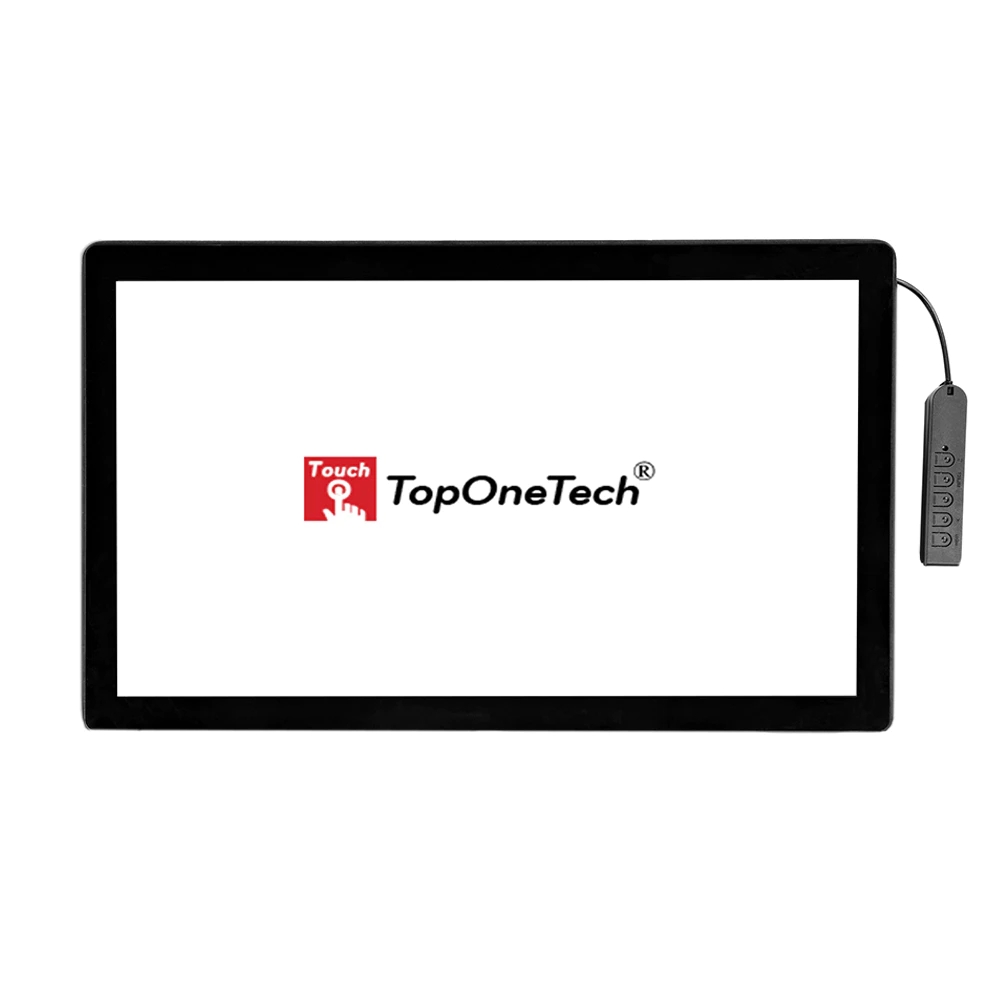

21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)

21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)
21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)
21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)
21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)
21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)
21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)
21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)
21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)

PRODUCT SPECIFICATIONS

Model

TOT215UCA001

Screen Size

21.5”

Active Area

476.64mm×268.11mm

Resolution

1920×1080 @ 60Hz

Contrast Ratio

1000:1

Brightness

Pure LCD panel

250cd/m2

With glass sensor

215cd/m2

Viewing Angle (Typ.at CR>10))

Horizontal(left/right)

89°/89°

Vertical(up/down)

89°/89°

Power supply

12V DC

Monitor Dimensions

516mm×311mm×38.5mm

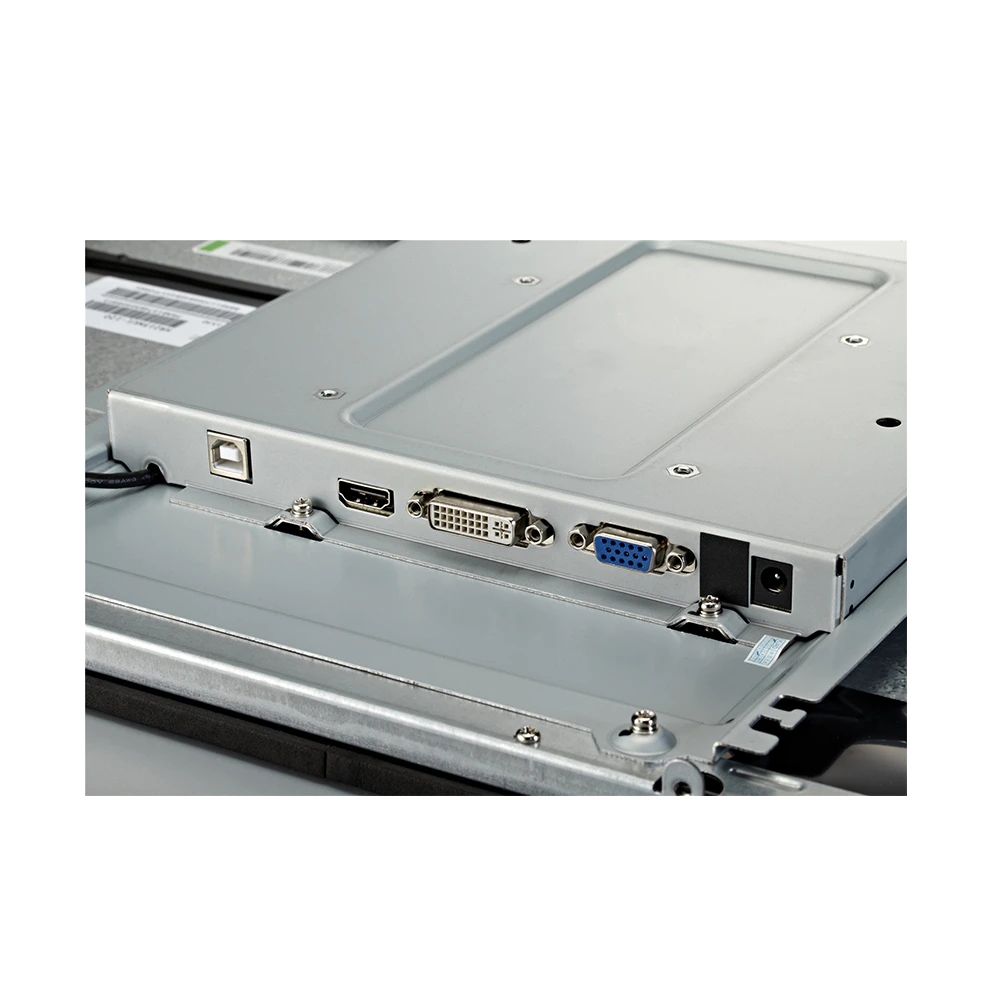

Touch System Interface

Having USB  interface

Environment

Operating temp

0~50°C

Storage temp

-10~60°C

Humidity

Operating RH

20%~80%

Storage RH

10%~90%

Regular Warranty

1year

MOQ

1 piece

Payment

T/T, Western Union, Credit Card, Paypal, L/C

Delivery Time

5-8 working days

Start port

EXW Shenzhen, Guangdong

Certification

FCC, CE, ERP


21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)
21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)
oemtouchmonitor.com/detail/1359.html
998

PRODUCT INTRODUCTION

21.5 inch open frame touchscreen monitor (PCAP, the water-proof and compatible type)

Toponetech`s 21.5 inch industrail display monitors are optimized for indoor environments. We provide customized indoor open frame display solutions catering to varying display sizes, brightness,installation, and other customer requirements . Toponetech’s industrial touch display ensure 24*7day reliability and long- life durability.



* Normal Brightness LCD with LED 300-400 cd/㎡

Sizes: 7"-65"(Other Sizes Available)

* Touch Screen Available

* Front IP grade Waterproof(Option)


DRAWING

APPLICATIONS

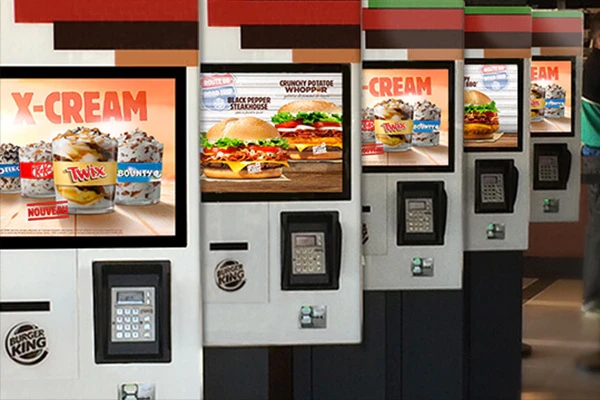

Gaming display, Vending machine, Self-service terminal, ATM machine, Jukebox, Education.
