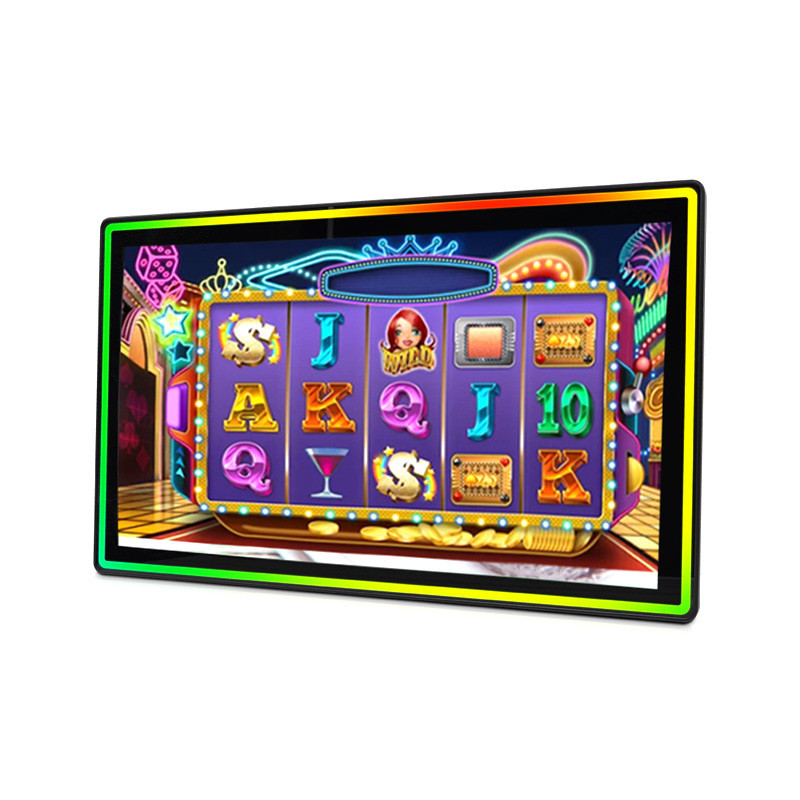

◆ 23.8 inch LCD PCAP open frame touchscreen monitor (with externalacrylic led bar) - TopOneTech

◆ PRODUCT SPECIFICATIONS

Model	TOT238UCA016
Screen Size	23.8"
Active Area	509.184mm×286.416mm
Resolution	1920×1080 @ 60Hz
Contrast Ratio	1000:1
Touch	PCAP
Brightness	Pure LCD Panel	250cd/m2
	With PCAP Glass Sensor	212cd/m2
Viewing Angle (Typ.at CR＞10)）	Horizontal(left/right)	89°/89°
	Vertical(up/down)	89°/89°
Power Consumption	19W /0.55W（Standby）
Environment	Operating Temp	0～50°C
	Storage Temp	-20～60°C
Humidity	Operating RH	20%～90%
	Storage RH:	5%～90%
Touch System Interface	Having USB interface
Monitor Dimensions	Width: 588.2mm；Height: 365.4mm；Depth: 45mm
Regular Warranty	1year
MOQ	1 pieces
Payment	T/T, Western Union, Credit Card, Paypal, L/C
Delivery Time	5-8 working days
Start port	EXW Shenzhen, Guangdong
Certification	FCC, CE, ERP

: 23.8 inch LCD PCAP open frame touchscreen monitor (with externalacrylic led bar) - TopOneTech; oemtouchmonitor.com/detail/1347.html; ￥998

◆ PRODUCT INTRODUCTION

Toponetech`s 23.8 inch open frame display with External Acrylic LED Bar (Front) is available in both standard and custom open frame monitor for gaming device sizes, Toponetech’s projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors.

* Sizes: 18.5"19” 21.5” 23.8” 27” 32"(Other Sizes Available)

* Touch Screen Available(Multi-touch,10points option)

* Front IP grade Waterproof(Option)

* Imported acrylic edge, light transmittance of 80%

* The handheld controller controls the LED light to flash, and the variety of lighting changes is up to 368 kinds.

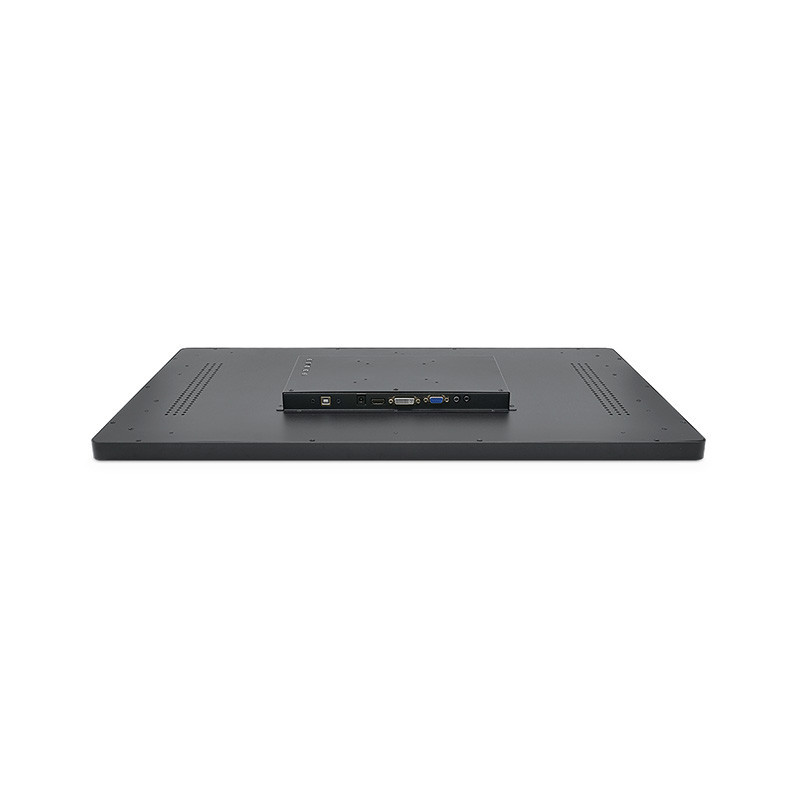

* USB, HDMI, VGA, DVI, DC, PC-AUDIO, EARPHONE-OUT connectors
