◆ 18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar）- TopOneTech

◆ PRODUCT SPECIFICATIONS

Model	TOT185UCA016(LED)
Screen Size	18.5”

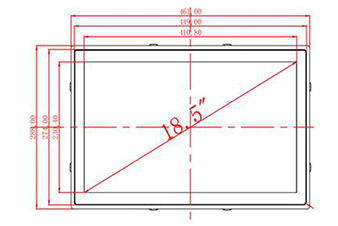

Active Area	410.8(mm)×230.4(mm)
Resolution	1366*768 @ 60Hz
Contrast Ratio	1000:01:00
Operating Temp	-10 ~ +65(°C)
Touch	PCAP
Brightness	250 cd/m2
Viewing Angle (Typ.at CR＞10)）	Horizontal(left/right)	178/178(°)
	Vertical(up/down)	178/178(°)
Connectors	1x 12V DC-IN
Power Consumption	28W Max.
Environment	0 ~ 50(°C)
Humidity	5%-90%
Regular Warranty	1year
MOQ	1 pieces
Payment	T/T, Western Union, Credit Card, Paypal, L/C
Delivery Time	5-8 working days
Start port	EXW Shenzhen, Guangdong
Certification	FCC, CE, ERP

: 18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar）- TopOneTech; oemtouchmonitor.com/detail/1283.html; ￥998

◆ PRODUCT INTRODUCTION

Toponetech`s 18.5 inch open frame monitor for gaming device with External Acrylic LED Bar (Front) is available in both standard and custom touchscreen monitors sizes, Toponetech’s projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors.

* Sizes: 18.5"19” 21.5” 23.8” 27” 32"(Other Sizes Available)

* Touch Screen Available(Multi-touch,10points option)

* Front IP grade Waterproof(Option)

* Imported acrylic edge, light transmittance of 80%

* The handheld controller controls the LED light to flash, and the variety of lighting changes is up to 368 kinds.

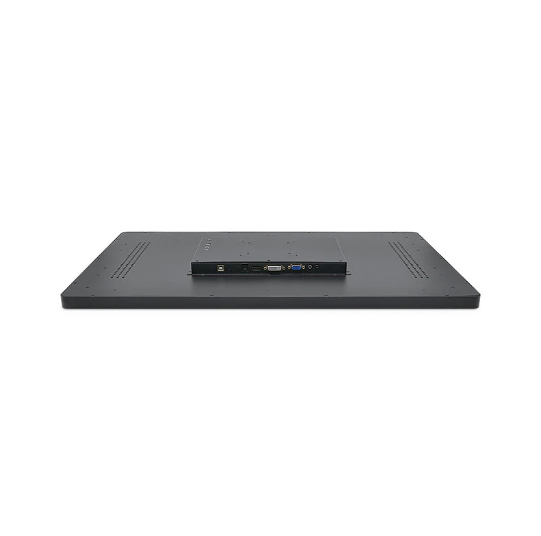

* USB, HDMI, VGA, DVI, DC, PC-AUDIO, EARPHONE-OUT connectors
