Top one tech is a touch screen display supplier, specialized in custom touch display prototyping and low volume manufacturing services since 2010!

Hablamos español, no dude en contactarnos: Whatsapp:008613631610695

23.8 inch PCAP touch screen - TopOneTech_Projected Capacitive touch screen_

Home > Products > Touch screens > Projected Capacitive touch screen > 23.8 inch PCAP touch screen - TopOneTech

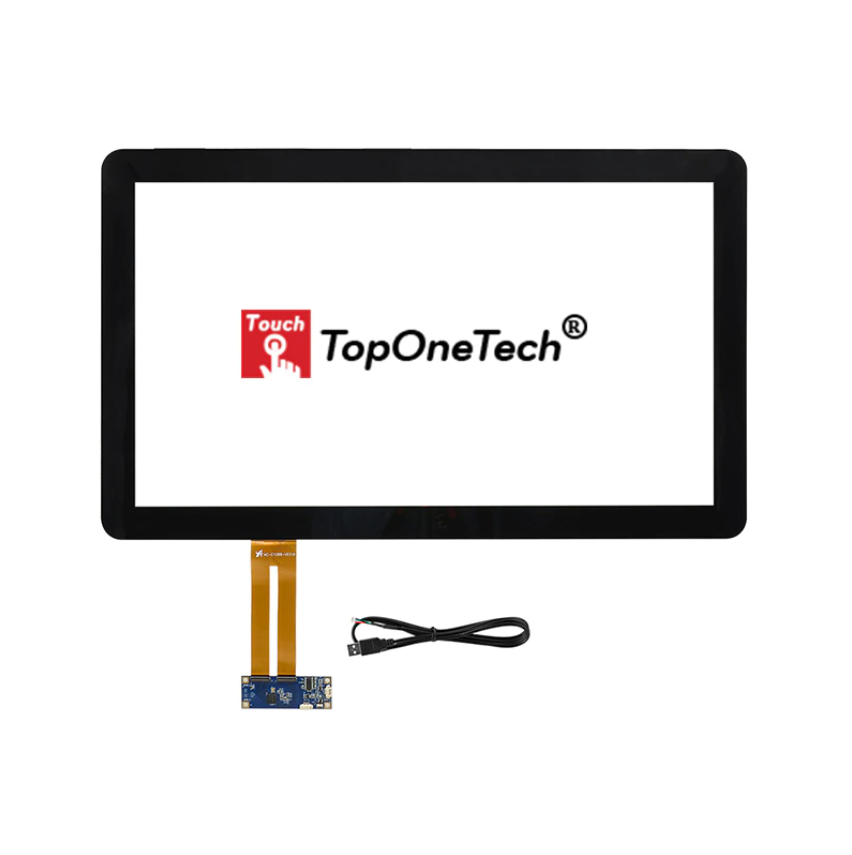

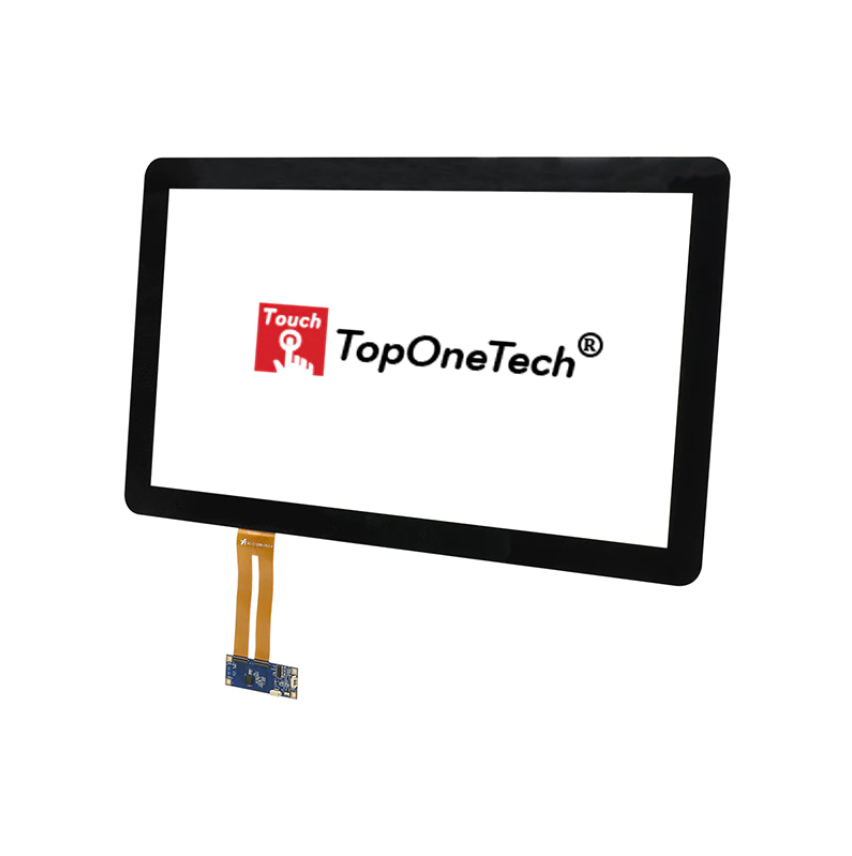

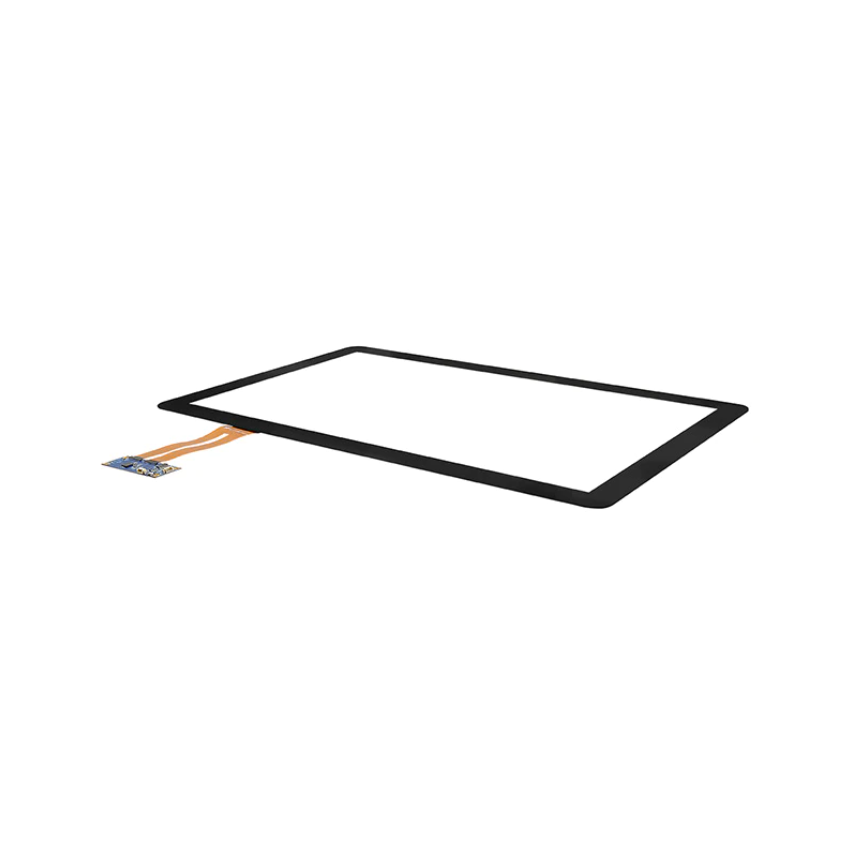

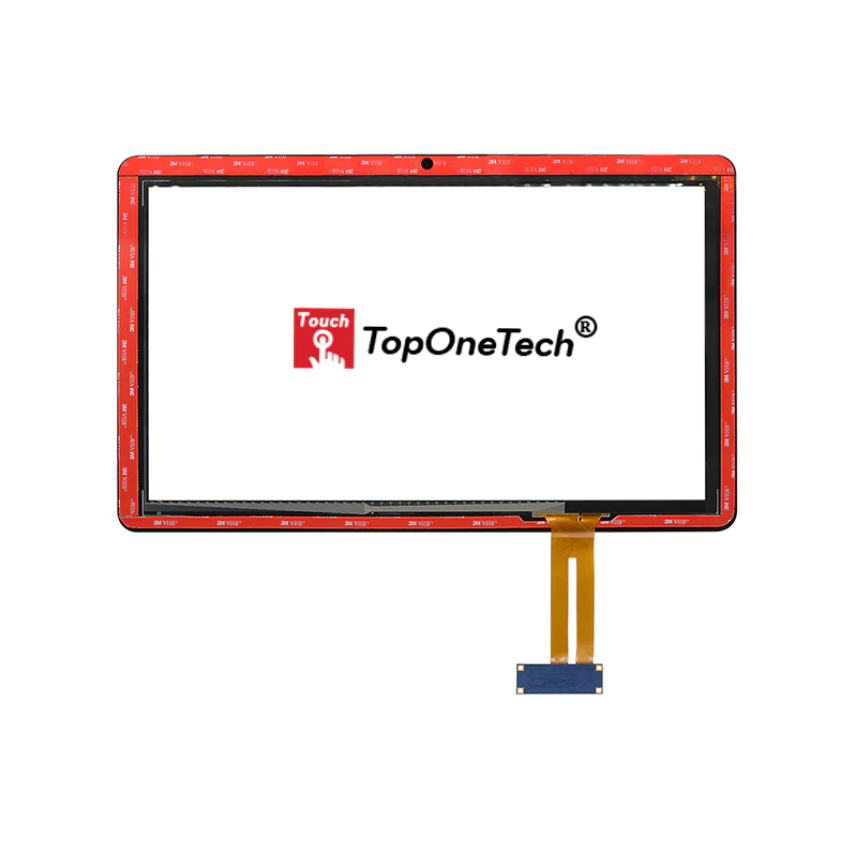

23.8 inch PCAP touch screen - TopOneTech

23.8 inch PCAP touch screen - TopOneTech
23.8 inch PCAP touch screen - TopOneTech
23.8 inch PCAP touch screen - TopOneTech
23.8 inch PCAP touch screen - TopOneTech
23.8 inch PCAP touch screen - TopOneTech
23.8 inch PCAP touch screen - TopOneTech
23.8 inch PCAP touch screen - TopOneTech
23.8 inch PCAP touch screen - TopOneTech
23.8 inch PCAP touch screen - TopOneTech
23.8 inch PCAP touch screen - TopOneTech

PRODUCT SPECIFICATIONS

Toponetech’s 23.8 inch projected capacitive (PCAP) touchscreens through various touch panel structures including anti-sacratched glass layers. Owing to its highly durable and smooth surface,projected capacitive touch screen is suitable for industrial display applications,Gaming,Transprotation,and so on.the waterproof technology of Projected capacitive touchscreen, which can be operated with Works with water,dust,oil,moisten and provides a high-quality touch experience under harsh condition. (up to 10 touch points). Toponetech offers both standard and custom industrial open frame gaming monitor sizes, Toponetech’s 23.8 inch projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors.

23.8 inch PCAP touch screen - TopOneTech
23.8 inch PCAP touch screen - TopOneTech
oemtouchmonitor.com/detail/1436.html
998

PRODUCT INTRODUCTION

23.8 inch PCAP touch screen - TopOneTech

Part Numeber(s)

TOT238UCA111

MOQ

1 piece

Payment

T/T, Western Union, Credit Card, Paypal, L/C

Delivery time

5-8 working days

Start port

EXW Shenzhen, Guangdong

Certification

FCC, CE, ERP

Size

23.8”

Ratio

16:9

Thickness(mm)

4.35

Connector type

USB

Controller

ILI2302

AA(MM)

525.50*297.00

OD(MM)

573.05*349.05

Surface hardness

6H

Operation voltage

3.3V

Transmittance

≥85%

Operation temperature

 -20℃~+70℃, ≤85%RH

Storage temperature

-30℃~+80℃, ≤85%RH


DRAWING

23.8 inch PCAP touch screen 3D drawing

APPLICATIONS

23.8 inch touch screen dispaly applications
